IOT-TH02 SHT30 digital temperature and humidity sensor uses SHT30 chip. The new SHT3x digital humidity sensor series takes sensor technology to a new level. As the successor to the SHT2x series, it has been determined to set the next industry standard for humidity sensing. The SHT3x humidity sensor series includes low-cost version SHT30 humidity sensor, standard version SHT31 humidity sensor and high-end version SHT35 humidity sensor.
Features:
SHT3x can improve reliability and accuracy indicators. SHT3x provides a series of new features, such as enhanced signal processing, two unique and user-selectable I2C addresses, an alarm mode with programmable humidity and temperature limits, and a communication speed of up to 1MHz.
Product parameters:
Product model: IOT-TH02 SHT30
Working voltage: 2.15-5.5V
Output signal: IIC digital signal
Humidity measurement range: 0-100%RH
Temperature measurement range: -40-125°C (Because the shell and wire are not resistant to high temperatures, please use it in an environment of -40-80°C)
Accuracy: ±2%RH ±0.2°C
| IC address: 0X44
Product shell material: ABS

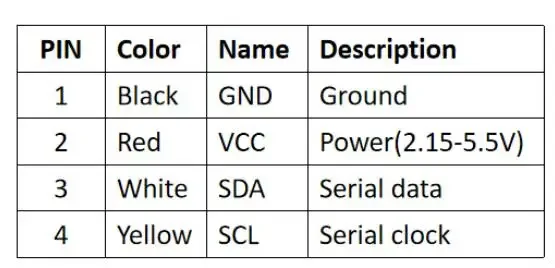

Wiring diagram:
