ESP32-C3 SuperMini WiFi Bluetooth
- دسته : ماژول - RF & بی سیم و WIFI
- واحد : عدد
- کد محصول: 4344
- وضعیت موجودی : موجوداست جدیدرسید
- 250 افغانی
| تعداد | قیمت |
|---|---|
| 1 | 250 افغانی |

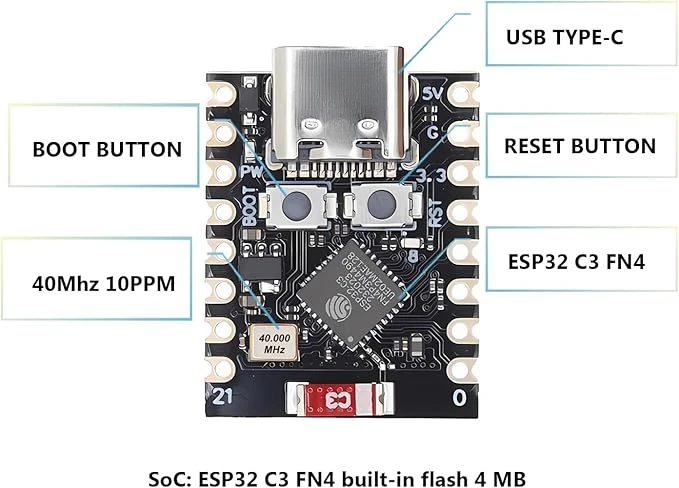

ESP32C3SuperMini is a mini IoT development board based on the Espressif ESP32-C3 WiFi/Bluetooth dual-mode chip. The ESP32-C3 is a 32-bit RISC-V CPU with an FPU (Floating Point Unit) for 32-bit single-precision operations, offering powerful computing capabilities. It boasts excellent RF performance, supporting IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols. The board comes with an external antenna to enhance signal strength for wireless applications. It also features a compact and refined design with single-sided surface mount technology. The board is equipped with a variety of interfaces, including 11 digital I/O pins that can be used as PWM pins and 4 analog I/O pins that can be used as ADC pins. It supports four serial interfaces: UART, I2C, and SPI. Additionally, the board has a small reset button and a bootloader mode button.
With these features, the ESP32C3SuperMini is positioned as a high-performance, low-power, cost-effective mini IoT development board, suitable for low-power IoT applications and wireless wearable applications.

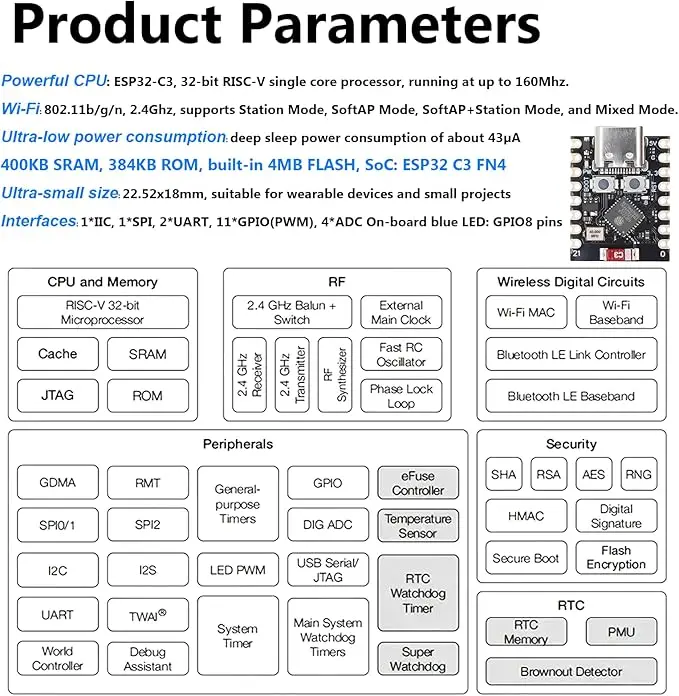

Product Specifications:
Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, running at up to 160 MHz
WiFi: 802.11b/g/n protocol, 2.4GHz, supports Station mode, SoftAP mode, SoftAP+Station mode, and promiscuous mode
Bluetooth: Bluetooth 5.0
Ultra-low power consumption: Deep sleep power consumption is approximately 43μA
Rich board resources: 400KB SRAM, 384KB ROM, built-in 4M flash
Chip model: ESP32C3FN4
Ultra-small size: As small as a thumb (22.52x18mm), classic form factor, suitable for wearable devices and small projects
Reliable security features: Supports AES-128/256, Hash, RSA, HMAC, digital signature, and secure boot with hardware encryption accelerators

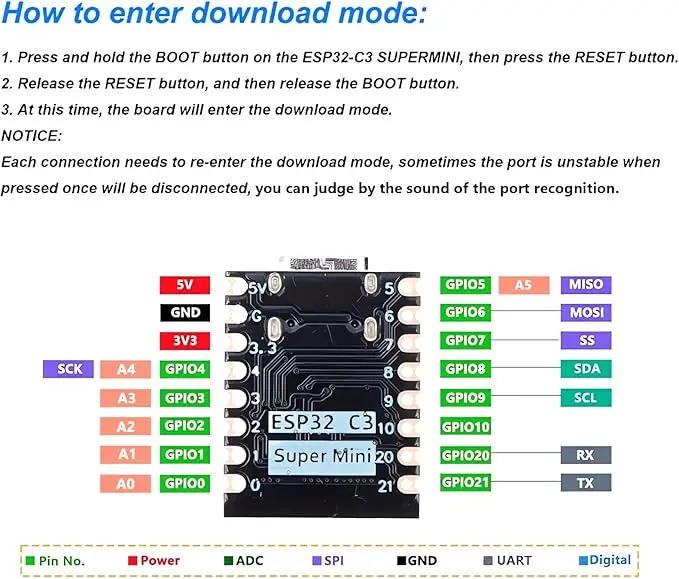

Rich interfaces: 1x I2C, 1x SPI, 2x UART, 11x GPIO (PWM), 4x ADC
Single-sided component, surface mount design
Onboard LED blue light: GPIO8 pin
Connectivity: WiFi 802.11b/g/n, Bluetooth 5.0
Low-Power: Deep sleep power consumption of approximately 43μA
Memory: 400KB SRAM, 384KB ROM, 4M flash
Size: Ultra-small form factor, as small as a thumb (22.52x18mm)
Security: Supports AES-128/256, Hash, RSA, HMAC, digital signature, and secure boot with hardware encryption accelerators
|Esp32 C3 Boots Button|Esp32 C3 Super Mini Uart|Esp32 C3 Bluetooth|
**Powerful Performance in a Compact Package**
The ESP32-C3 SuperMini Development Board is a testament to the convergence of power and portability. This mini IoT development board is based on the versatile Espressif ESP32-C3 chip, which offers a robust 32-bit RISC-V CPU with an FPU (Floating Point Unit) for single-precision operations, making it a potent computing solution for various IoT applications. The board's compact size is a testament to its ultra-low power consumption, ensuring that it can operate efficiently in a variety of scenarios, from wearable devices to small projects.
**Adaptable Connectivity and Ease of Use**
With a suite of connectivity options, the ESP32-C3 SuperMini board is designed to be adaptable and user-friendly. The board supports WiFi 802.11b/g/n protocols, ensuring seamless wireless connectivity, and Bluetooth 5.0, offering a more efficient and reliable way to connect with other devices. It also features an external antenna, enhancing signal strength for wireless applications. For ease of use, the board comes with a bootloader mode and a boots button, allowing for easy programming and configuration.
**Versatile Interfacing Capabilities**
The ESP32-C3 SuperMini board is a haven for developers seeking versatile interfacing capabilities. It is equipped with 4 analog I/O pins that can be used as ADC pins, 11 digital I/O pins that can be used as PWM pins, and four serial interfaces that include UART, I2C, and SPI. This rich array of interfaces enables the board to interface with a variety of peripherals, making it a go-to choice for low-power IoT applications and wireless wearable projects.
In summary, the ESP32-C3 SuperMini Development Board is a powerful and compact solution for IoT developers seeking to build low-power, wireless devices. With its rich interfacing capabilities, ultra-low power consumption, and versatile connectivity, it is an ideal choice for a wide range of projects from wearable devices to small IoT applications.
