150W+150W Hifi Fully Amplifier Board 2SC5200 2SA1943 Kit
- دسته : ماژول - صوت
- واحد : عدد
- کد محصول: 4337
- وضعیت موجودی : موجوداست جدیدرسید
- 1400 افغانی
| تعداد | قیمت |
|---|---|
| 1 | 1400 افغانی |
Description
Professional DIY high-power amplifier kit
150W+150W fully complementary dual channel high fidelity sound quality audiophile's choice
Product Overview:

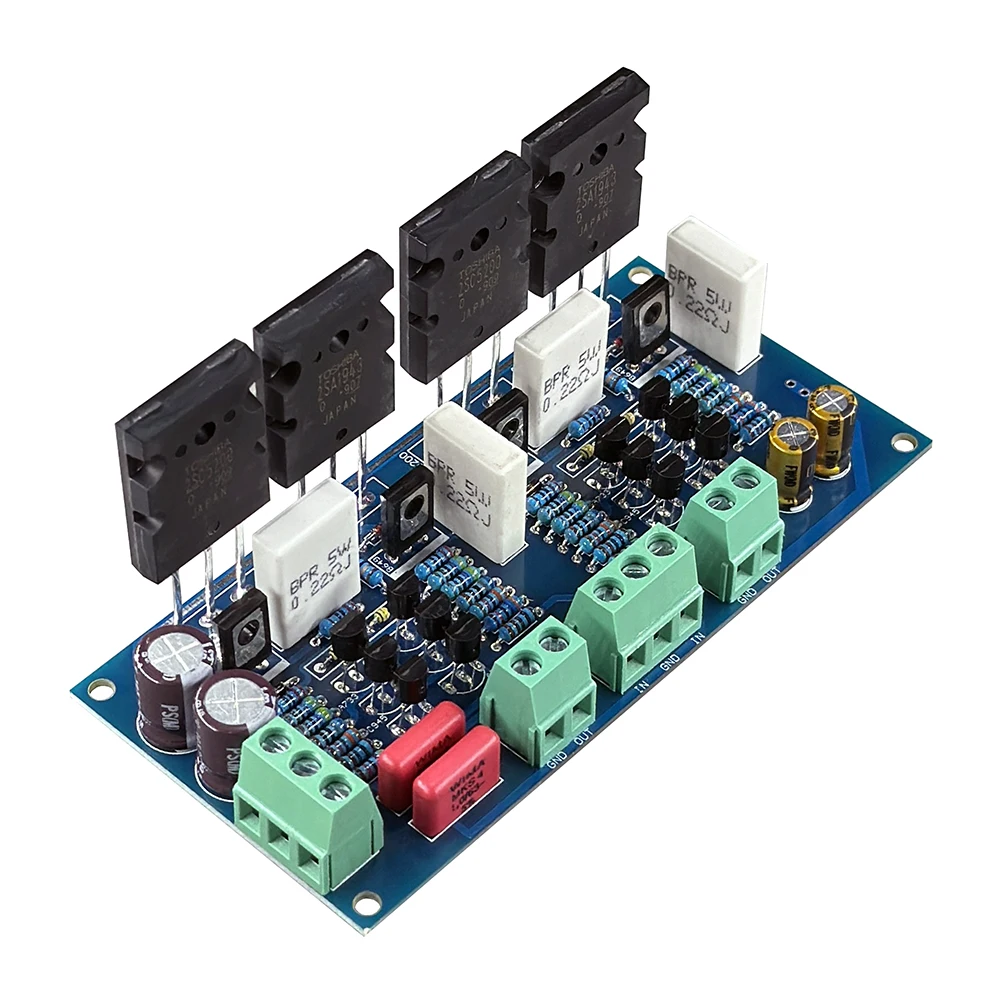

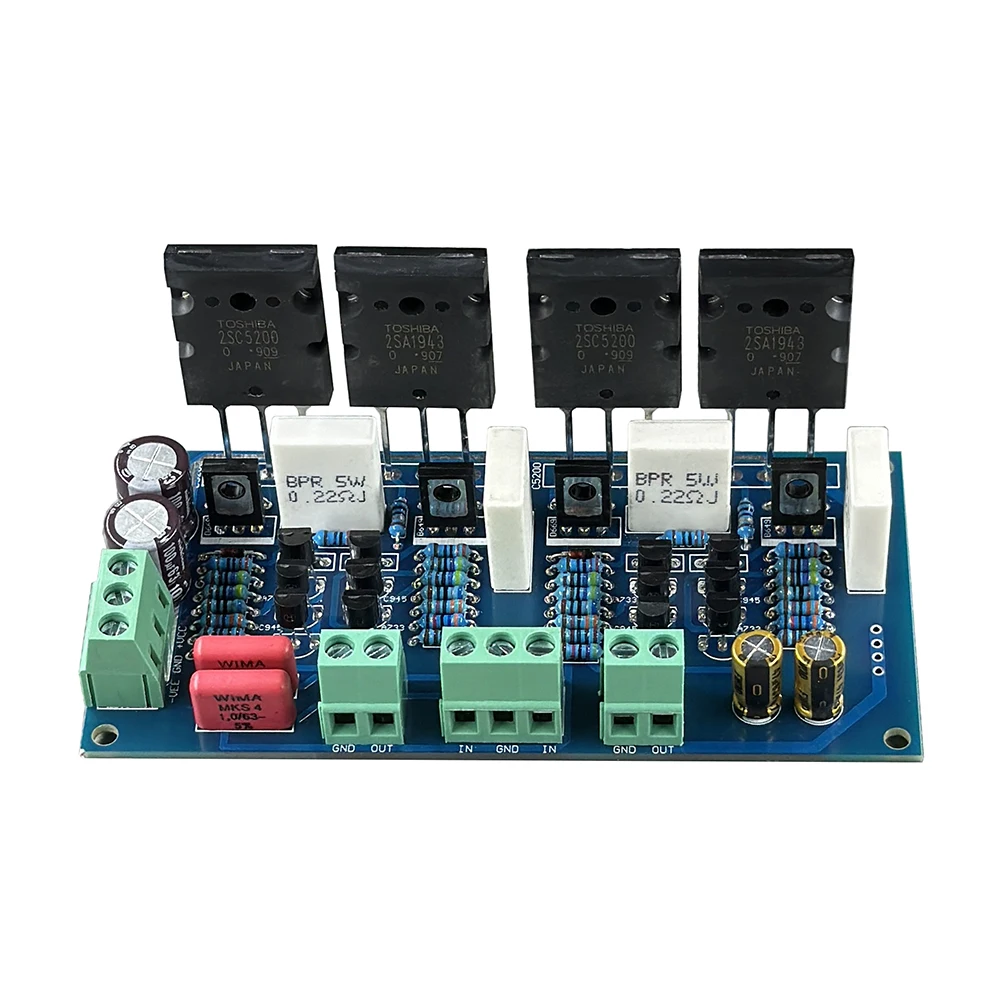

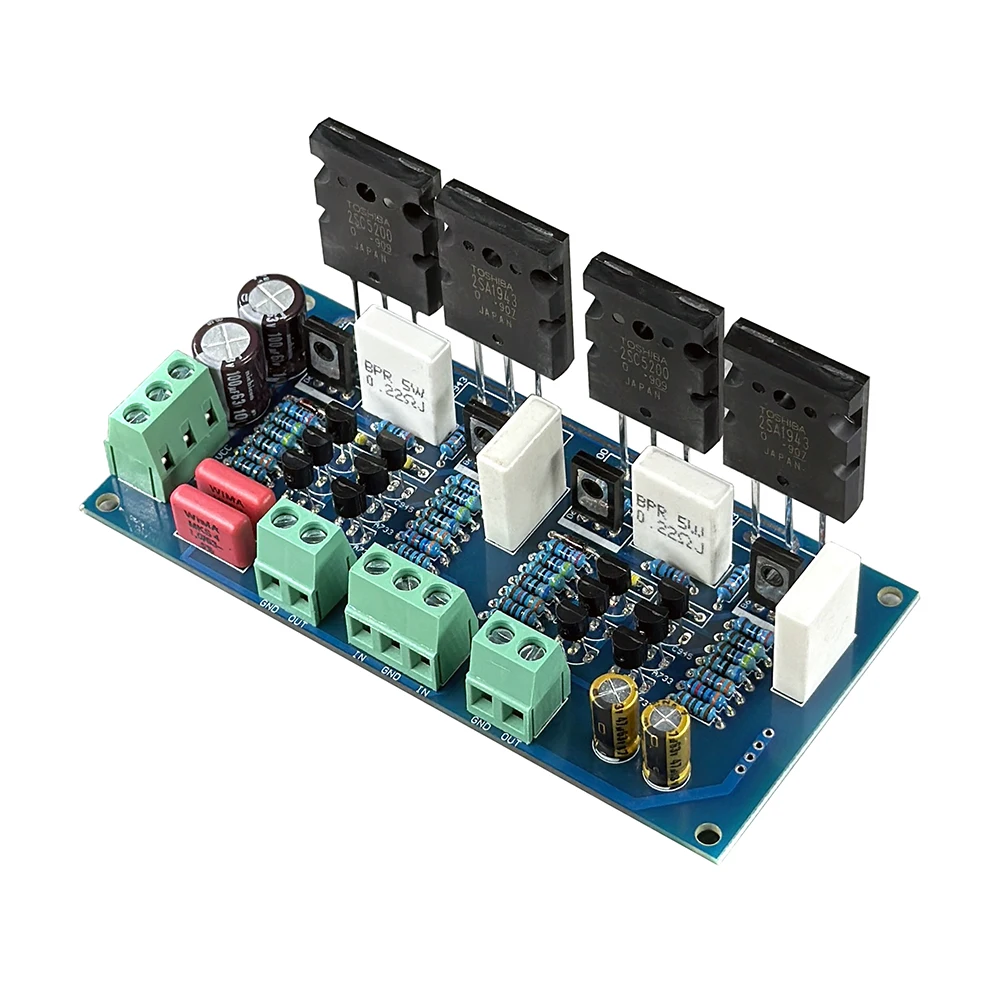

This amplifier board adopts the classic C5200/A1943 high-power tube combination to create a fully complementary symmetrical dual channel structure, specially designed for DIY enthusiasts who pursue high power and high fidelity sound quality. The circuit is simple and efficient, without the need for complex debugging, and once successfully soldered, you can enjoy stunning sound effects. Suitable for scenarios such as home audio and Hi Fi audio upgrades, it is an ideal solution for optimizing the space of small computer cases.
Core Highlights:
● Strong power: Supports 150W × 2 (4 Ω) or 100W × 2 (8 Ω) output, easily driving various speakers.
● High fidelity sound quality: frequency response of 20Hz-20kHz, harmonic distortion of only 0.01%, transparent vocals, and full low frequencies.
● Compact design: PCB size 109 × 52mm, reasonable layout, maximizing installation space savings.
● Fully complementary structure: Symmetric circuit design effectively reduces nonlinear distortion and enhances sound dynamic balance.
Technical Specifications:
●Output power: 4 Ω: 150W+150W; 8Ω: 100W+100W
●Frequency response range: 20Hz-20kHz (± 1dB)
●Harmonic distortion: ≤ 0.01% (1kHz, rated power)

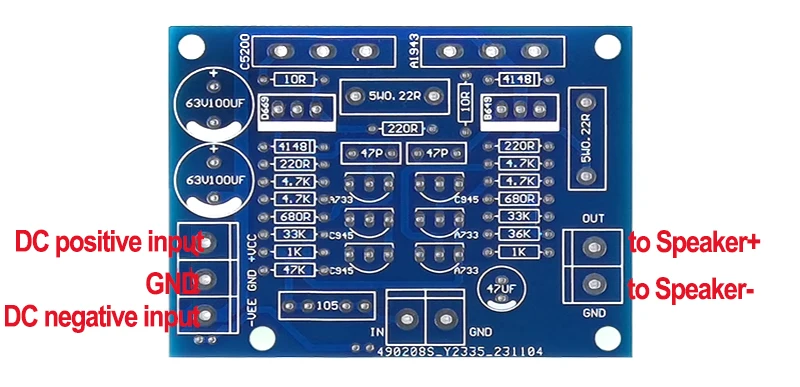

●Power supply voltage: DC ± 20V~± 60V (three wire system)
Static current: about 10mA/channel
●Midpoint voltage: ≤ 10mV (stable without drift)
●PCB size: 109mm in length, 52mm in width, and 1.6mm in thickness
●Weight: 95 grams (excluding radiator)
Instructions for Use:
???? Installation requirements
● Essential for heat dissipation: The large tube C5200/A1943 generates extremely high heat and must be equipped with a large heat sink (recommended ≥ 2kg aluminum material) and coated with thermal conductive silicone grease.
●Insulation treatment: Insulation gaskets/mica sheets need to be installed between the output pipe and the radiator to prevent short circuit and tube burning.
●Power configuration: Only supports DC power supply, requires external transformer+rectifier filter circuit (AC input needs to be rectified to DC ± V).
⚠️ Safety Warning
●The component pins cannot be returned or exchanged after trimming/tinning. Please check the polarity before soldering!
●Electrolytic capacitors and diodes must not be reversed, and power lines must not be misconnected (positive/negative/ground).
●Please do not purchase without electronic foundation. Our store does not provide welding guidance or troubleshooting.
Kit Content:
● PCB board has been tested (with clear component part numbers printed)
● Components such as resistors, capacitors, transistors, etc. required for fully complementary circuits
● 2SC5200/2SA1943 high-power paired tube 2 pairs (full power redundancy).
Debugging Instructions:
1. This board is designed with precision and does not require manual debugging. After power on:
● The midpoint voltage automatically stabilizes within 10mV;
● The static current is about 10mA per channel and does not require adjustment.
2. It is recommended to first power on the series fuse and monitor the output voltage for accuracy before using it normally.
intended for:
● Audio DIY players with circuit soldering experience;
● Users with basic tools such as multimeters and soldering irons;
● Enthusiasts who pursue cost-effectiveness and hope to improve the power of home audio systems.
Note:
Product information can be found on the details page, and no additional technical support such as circuit diagrams is provided. Purchasing is considered acceptance of installation risks. Please evaluate your own abilities rationally before placing an order




If you're an audiophile or a DIY enthusiast looking to build a high-performance audio system, the 150W+150W Hifi Fully Complementary Dual Channel Power Amplifier Board 2SC5200 2SA1943 Amp Kit is the perfect solution for you. Designed for those who appreciate the richness of high-fidelity sound and the satisfaction of crafting their own audio equipment, this amplifier board offers a powerful and reliable platform for building a dual-channel power amplifier. Whether you're upgrading your home audio setup or creating a custom amplifier for a professional studio, this kit provides the foundation you need to deliver clean, distortion-free sound at impressive power levels.
What Makes This Amplifier Kit Stand Out?
This amplifier board is engineered to deliver 150W per channel, making it ideal for driving a wide range of speakers, from bookshelf models to large floor-standing units. The use of 2SC5200 and 2SA1943 complementary transistors ensures a balanced and symmetrical output, which is essential for achieving high-quality audio reproduction. These transistors are known for their excellent thermal stability and high current handling capabilities, making them a popular choice among audio engineers and DIY builders.
The fully complementary design of this amplifier board eliminates the need for a global negative feedback loop, which can sometimes introduce unwanted distortion. Instead, the design focuses on a direct and clean signal path, preserving the integrity of the original audio signal. This results in a more natural and immersive listening experience, with accurate sound reproduction across the entire frequency spectrum.
Key Features of the 150W+150W Hifi Amplifier Board
- Dual Channel Output: The board is designed to handle two independent audio channels, making it suitable for stereo amplification.
- High Power Output: Each channel delivers up to 150W of power, ensuring strong and dynamic sound performance.
- Complementary Transistors: The use of 2SC5200 and 2SA1943 transistors ensures a balanced and stable output with minimal distortion.
- Fully Complementary Design: This design enhances sound clarity and reduces the need for complex feedback circuits.
- DIY-Friendly Kit: The amplifier board is designed for easy assembly, making it ideal for hobbyists and DIY enthusiasts.
- High-Fidelity Sound: The board is optimized for high-fidelity audio reproduction, delivering clean and detailed sound.
- Thermal Stability: The transistors used in this kit are known for their excellent thermal performance, ensuring long-term reliability.
Why Choose a DIY Amplifier Kit?
Building your own amplifier can be a rewarding experience, especially when you're using a high-quality board like the 150W+150W Hifi Fully Complementary Dual Channel Power Amplifier Board. Unlike pre-built amplifiers, a DIY kit allows you to customize the design to suit your specific needs. You can choose the type of enclosure, the power supply, and even the speaker configuration, giving you complete control over the final product.
Moreover, assembling your own amplifier gives you a deeper understanding of how audio equipment works. You'll learn about circuit design, component selection, and thermal management, all of which are essential skills for any serious audio enthusiast. Whether you're a beginner or an experienced builder, this kit provides a solid foundation for creating a powerful and high-quality amplifier.
How to Use the Amplifier Board
Using the 150W+150W Hifi Amplifier Board is straightforward, especially if you have some basic electronics knowledge. The board is designed to be mounted on a heatsink to ensure proper thermal dissipation. You'll also need to connect it to a suitable power supply, typically a dual-voltage supply with a center tap. The input signals can be connected via RCA or XLR connectors, depending on your setup.
Once everything is connected, you can fine-tune the amplifier to match your speakers and listening environment. The board is designed to work with a wide range of speaker impedances, but it's always a good idea to check the specifications of your speakers to ensure compatibility.
Applications and Use Cases
This amplifier board is incredibly versatile and can be used in a variety of applications. Here are some of the most common use cases:
- Home Audio Systems: Ideal for powering high-end speakers in a home theater or music listening room.
- Studio Monitors: Perfect for use in recording studios where accurate sound reproduction is essential.
- Live Sound Reinforcement: Can be used in small to medium-sized live sound setups to drive stage monitors or main speakers.
- Custom Amplifier Builds: Great for DIY enthusiasts who want to build a custom amplifier tailored to their specific needs.
- Car Audio Systems: With the right modifications, this board can be adapted for use in car audio systems.
What You Get in the Kit
The 150W+150W Hifi Fully Complementary Dual Channel Power Amplifier Board 2SC5200 2SA1943 Amp Kit includes everything you need to build a powerful and high-quality amplifier. The kit typically includes:
- The main amplifier board with all the necessary components pre-soldered.
- A set of 2SC5200 and 2SA1943 transistors for each channel.
- Mounting hardware and instructions for assembly.
- A detailed schematic and user manual for reference.
Depending on the supplier, some kits may also include additional components such as capacitors, resistors, and potentiometers. It's always a good idea to check the product description to see exactly what is included.
Tips for Building Your Amplifier
If you're new to building amplifiers, here are a few tips to help you get started:
- Use a Quality Power Supply: A stable and well-regulated power supply is essential for optimal performance.
- Mount the Board on a Heatsink: Proper thermal management is crucial to prevent overheating and ensure long-term reliability.
- Use High-Quality Components: While the board comes with pre-soldered components, you can upgrade certain parts for better performance.
- Test the Amplifier Before Final Assembly: Always test the amplifier with a dummy load before connecting it to your speakers.
- Follow the Instructions Carefully: The user manual and schematic are your best guides for a successful build.
Final Thoughts
The 150W+150W Hifi Fully Complementary Dual Channel Power Amplifier Board 2SC5200 2SA1943 Amp Kit is a powerful and versatile solution for anyone looking to build a high-quality audio amplifier. With its dual-channel design, high power output, and use of complementary transistors, this board delivers excellent sound performance and reliability. Whether you're a DIY enthusiast or a professional audio engineer, this kit provides the foundation you need to create a custom amplifier that meets your specific needs.
Investing in this amplifier board is not just about building an amplifier—it's about creating a piece of audio equipment that reflects your passion for sound. With the right components and a bit of patience, you can build an amplifier that delivers clean, powerful, and high-fidelity audio for years to come.
