CA1235 Adjustable Power Module – High-Efficiency Step-Down Power Supply for Integrated Circuits
In the world of electronics, reliable and efficient power management is essential for ensuring the smooth operation of circuits and devices. The CA1235 Adjustable Power Module is a high-performance step-down (buck) power supply module designed to deliver stable and adjustable output voltages with minimal input requirements. Whether you're working on a compact embedded system, a portable device, or a complex circuit board, the CA1235 module offers a versatile and efficient power solution.
This article will explore the key features, specifications, and applications of the CA1235 buck power module, making it an ideal choice for engineers, hobbyists, and professionals working with integrated circuits and power management systems.
---

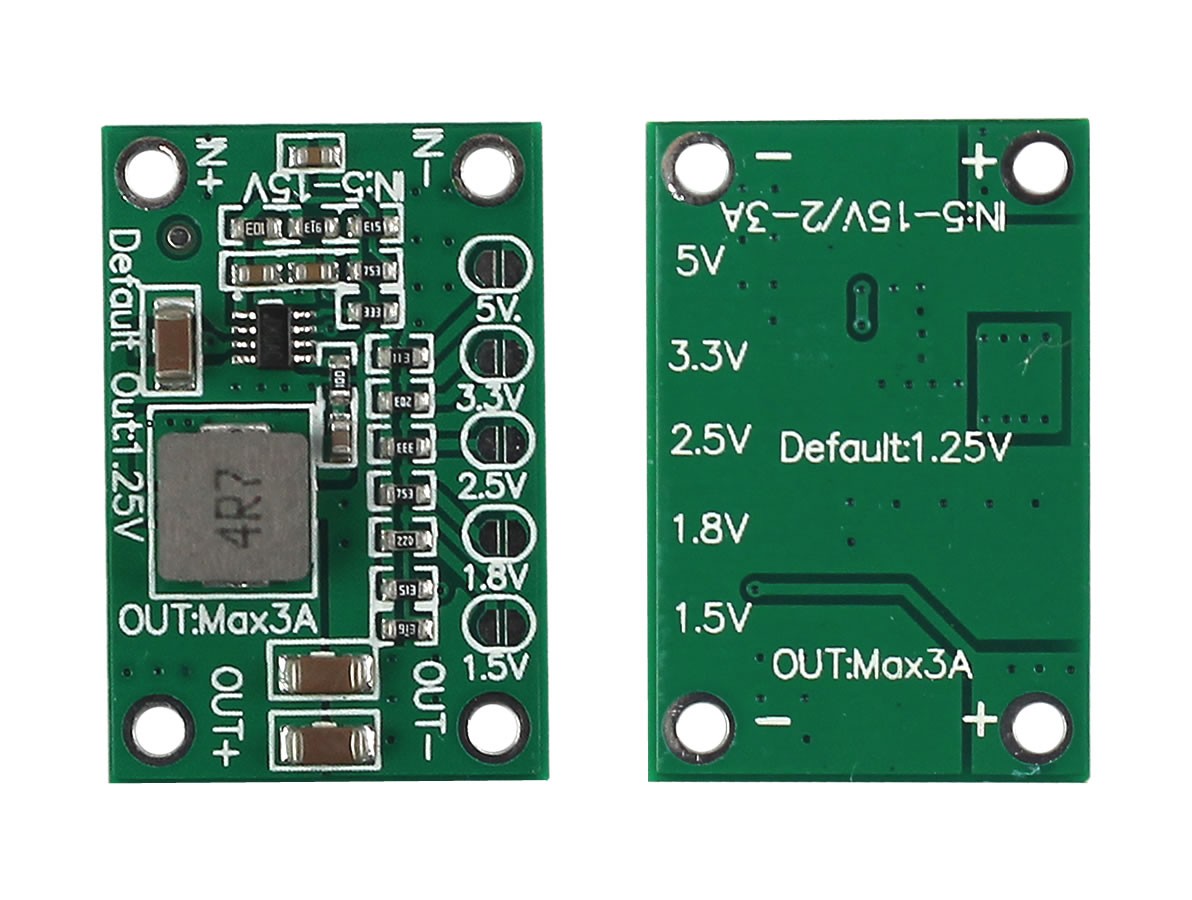

Overview of the CA1235 Power Module
The CA1235 is a compact and highly efficient DC-DC step-down power module that can convert an input voltage range of 5V to 16V into a stable and adjustable output voltage. It is particularly well-suited for applications that require a regulated power supply with multiple output options. The module is based on a high-performance switching regulator and is designed to deliver consistent performance under varying load conditions.
One of the standout features of the CA1235 module is its ability to provide a wide range of output voltages, including 1.25V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V, making it highly adaptable for a variety of electronic applications. This flexibility is especially useful in systems where multiple voltage levels are required for different components.
---
Key Features of the CA1235 Module
- Wide Input Voltage Range (5V to 16V): The module can accept a broad range of input voltages, making it compatible with various power sources such as batteries, DC adapters, and other regulated power supplies.
- Adjustable Output Voltage (1.25V to 5V): With the ability to fine-tune the output voltage, the CA1235 module is ideal for applications that require precise power regulation.
- High Efficiency (up to 90%): The module is designed to minimize power loss, ensuring that your system remains energy-efficient and generates less heat.
- Compact and Lightweight Design: The small form factor of the CA1235 module makes it suitable for use in space-constrained applications, such as portable electronics and embedded systems.
- Low Quiescent Current: The module consumes very little current when idle, which is beneficial for battery-powered devices and low-power applications.
- Integrated Protection Features: The CA1235 includes built-in protection mechanisms such as overcurrent protection, thermal shutdown, and short-circuit protection, ensuring the safety and longevity of your circuit.
- Easy to Use and Integrate: The module is user-friendly and can be easily integrated into existing circuits without the need for complex external components.
---
Technical Specifications of the CA1235 Module
| Specification | Details |
|---------------|---------|
| Input Voltage | 5V to 16V DC |
| Output Voltage | Adjustable from 1.25V to 5V |
| Output Current | Up to 3A (depending on input and output voltage) |
| Efficiency | Up to 90% |
| Operating Temperature | -40°C to +85°C |
| Quiescent Current | < 1mA |
| Switching Frequency | 1.2MHz |
| Package Type | Surface Mount (SMT) |
| Protection Features | Overcurrent, Overvoltage, Thermal Shutdown |
These specifications make the CA1235 module a reliable and efficient choice for a wide range of applications, from consumer electronics to industrial systems.
---
Applications of the CA1235 Power Module
The CA1235 buck power module is suitable for a wide range of applications due to its versatility and high performance. Some of the most common use cases include:
- Embedded Systems: The module is ideal for use in embedded systems where a stable and adjustable power supply is required for microcontrollers, sensors, and other low-voltage components.
- Portable Electronics: With its compact size and high efficiency, the CA1235 is a great choice for portable devices such as handheld gadgets, drones, and battery-powered tools.
- Industrial Automation: The module can be used in industrial control systems, programmable logic controllers (PLCs), and other automation equipment that require a reliable power source.
- LED Lighting: The CA1235 can be used to power LED arrays and lighting systems that require a regulated voltage supply.
- Communication Devices: The module is suitable for powering communication modules, such as Wi-Fi, Bluetooth, and Zigbee devices, which often require specific voltage levels.
- Power Supply for Integrated Circuits (ICs): As a step-down power supply, the CA1235 is commonly used to power various types of integrated circuits, including microprocessors, memory chips, and logic gates.
---
How to Use the CA1235 Module
Using the CA1235 module is straightforward. The module typically has four pins: input voltage (VIN), ground (GND), output voltage (VOUT), and an optional enable (EN) pin. To adjust the output voltage, a resistor divider is connected between the output and the feedback (FB) pin. The output voltage can be set using the following formula:
Vout = 1.25V × (1 + R2/R1)
Where R1 and R2 are the resistors in the feedback network. This allows for precise control over the output voltage, making the CA1235 module highly customizable.
For users who prefer a fixed output, pre-set versions of the module are also available, such as the CA1235 1.8V, CA1235 3.3V, and CA1235 5V models. These fixed-output modules are ideal for applications where a specific voltage is required without the need for external components.
---
CA1235 Module Datasheet and Technical Documentation
For detailed information about the CA1235 module, including electrical characteristics, pinout diagrams, and application notes, users can refer to the CA1235 module datasheet. The datasheet provides comprehensive technical information that is essential for proper integration and usage of the module in various circuits.
The CA1235 datasheet is available from the manufacturer or through authorized distributors. It includes important details such as thermal performance, recommended operating conditions, and layout guidelines for optimal performance.
---
CA1235 G Module – Enhanced Performance and Reliability
For users who require even higher performance and reliability, the CA1235 G module is an upgraded version of the standard CA1235. The CA1235 G offers improved thermal management, higher efficiency, and enhanced stability under heavy load conditions. It is particularly suitable for high-power applications and environments with extreme temperatures.
The CA1235 G is also compatible with the same input and output specifications as the standard CA1235, making it a drop-in replacement in many applications. Whether you're looking for a standard or enhanced version, the CA1235 family of modules provides a reliable and efficient power solution for your electronic projects.
---
Why Choose the CA1235 Power Module?
There are several reasons why the CA1235 buck power module is a popular choice among engineers and hobbyists:
- High Efficiency and Low Heat Generation: The module's high efficiency ensures minimal power loss and reduced heat output, which is crucial for maintaining system stability and longevity.
- Compact and Lightweight: The small size of the module makes it ideal for use in space-constrained applications, such as wearable devices and compact electronics.
- Wide Input and Output Range: The ability to handle a wide range of input voltages and provide multiple output options makes the CA1235 highly versatile.
- Easy Integration: The module can be easily integrated into existing circuits without the need for complex external components.
- Cost-Effective: Compared to custom-designed power supplies, the CA1235 module offers a cost-effective and ready-to-use solution for power management.
---
Conclusion
The CA1235 Adjustable Power Module is a high-performance, compact, and efficient step-down power supply module that is ideal for a wide range of applications. Whether you need a 1.8V, 3.3V, or 5V output, the CA1235 module provides a reliable and stable power solution. With its wide input range, adjustable output, and built-in protection features, it is a versatile choice for engineers, hobbyists, and professionals working with integrated circuits and power management systems.
For those looking for a fixed-output version, the CA1235 1.25V, CA1235 1.5V, and other variants are also available. And for enhanced performance, the CA1235 G module offers improved thermal management and stability.
Whether you're designing a new circuit or upgrading an existing one, the CA1235 module is a powerful and reliable power solution that can help you achieve optimal performance and efficiency.
