معرفی مولتی متر هوشمند AN621

مشخصات:
انتخاب خودکار توابع اندازه گیری و محدوده
حفاظت از اضافه بار در مقیاس کامل
حداکثر ولتاژ مجاز بین پایانه اندازه گیری و زمین 1000 ولت DC یا 750 ولت AC است.
جنس بدنه: ABS
ابعاد: 133×66.5×22.5 میلی متر / 5.24×2.62×0.89 اینچ
نمایشگر: حداکثر مقدار LCD نمایشگر 9999 رقمی است.
نشانگر قطبیت: نشانگر خودکار، “-” به معنای قطبیت منفی است.
نمایش بیش از حد: “OL” یا “-OL”
زمان نمونه برداری حدود: 3 بار در ثانیه
نمایشگر واحد: با عملکرد، نمایشگر واحد قدرت
زمان خاموش شدن خودکار: 15 دقیقه
منبع تغذیه: باتری لیتیومی 3.7V/600mAh
ضریب دما: کمتر از 0.1X دقت / ℃
دمای کار: 0℃ – 40℃
دمای ذخیره سازی: -10℃ – 50℃

ANENG 621A Touch Screen Intelligent Digital Multimeter 9999 Counts Auto Range Rechargeable Portable NCV Universal Meter Voltmeter Ammeter

Features:
Intelligent Multimeter with Multiple Functions: it can measure AC/DC current, AC/DC voltage, resistance, capacitance, temperature, frequency, continuity and diode test, fire wire detection.
Flashlight Function: auxiliary lighting up the working area in the low lit or dark environment, and it will automatically turned off after about 1 minutes.
NCV Non-contact Voltage Detection: place the NCV sensor closer to the measured cable, and the multimeter can detect whether the voltage is greater than 90ACV. When the AC voltage being detected, the meter buzzer alarms and the LCD analog bar displays the induction intensity.
Safety Operation: built-in overload protection fuse, smart anti-burn. Meet the DC/AC 600V CAT III overvoltage standard, and double insulation protection.
Smart Touch Screen Control: easy to operate, with large VA color reverse LCD display screen, convenient to check the measured data at a glance.
Compact & Accurate: as small as a mobile phone, convenient to use and carry around. Equipped with high performance chip to ensure its accuracy.
Silicone Protective Case: protected with a silica gel case, you can use the meter at various condition without worrying it from falling down or scratch by hardware. Buy from alphakit

Specifications:
AC Current: 999.9mA/10A
DC Current: 999.9mA/10A
AC Voltage: 999.9mV/9.999V/99.99V/999.9V
DC Voltage: 999.9mV/9.999V/99.99V/999.9V
Resistance: 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ/9.999MΩ/99.99MΩ
Capacitance: 9.999nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Temperature: -40~1000℃(-40~1832℉)
Frequency: 100Hz/1000Hz
alphakit.ir
Color: Black / Red (Optional)
Material: ABS
Working Altitude: Maximum 2000m
Display: LCD
Maximum Display Value: 9999 digits
Polarity Indication: Automatic indication, “-” indicates negative
Overrange Display: “OL” or “-OL”
Sampling Time: About 3 times/second
Automatic Shutdown Time: 15 minutes
Battery Undervoltage Indicator: Yes
Temperature Coefficient: <0.1X accuracy/℃
Operating Temperature: 0~40°C
Storage Temperature: -10~50℃
Power Supply: Built-in 3.7V 600mAh polymer lithium battery
Item Size: 133 * 66.5 * 22.5mm / 5.24 * 2.62 * 0.89in
Item Weight: 162g / 5.71oz
Package Weight: 295g / 10.41oz
Package Size: 14.5 * 7.2 * 6.2cm / 5.71 * 2.83 * 2.44in

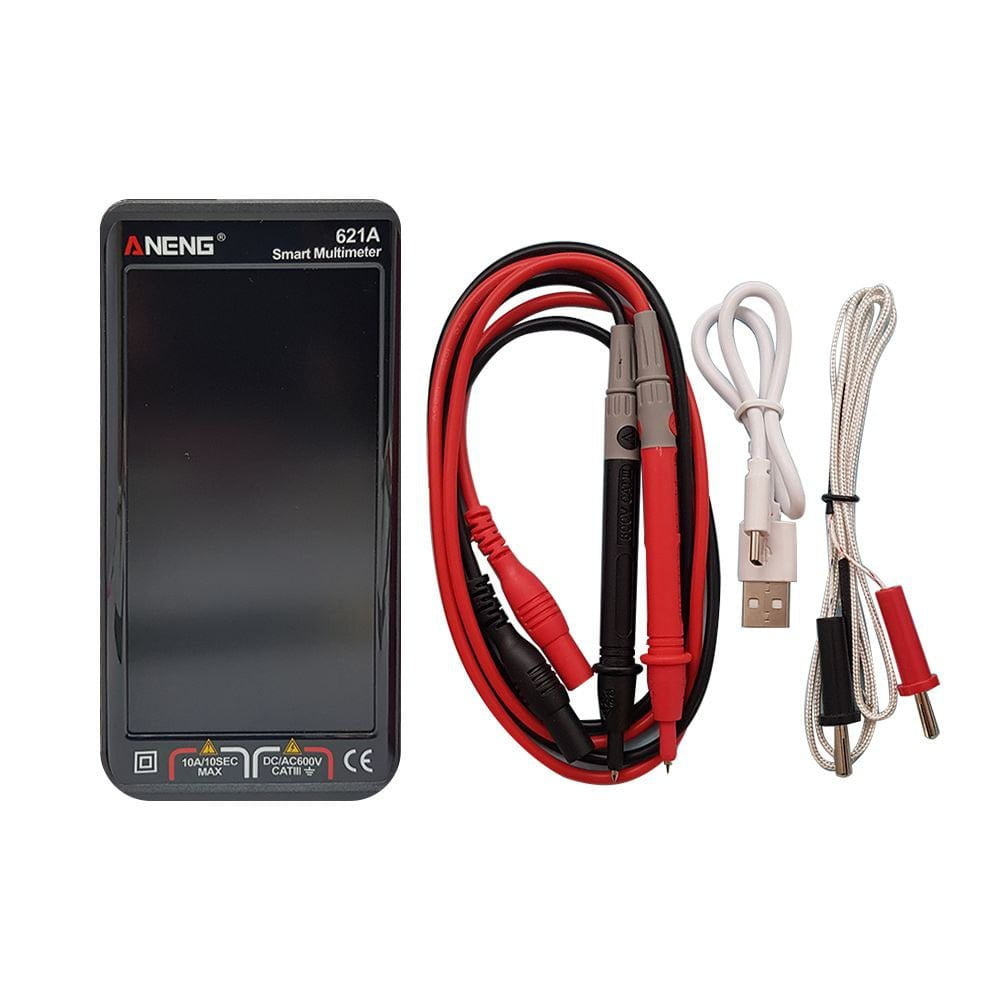

Packing List:
1 x Multimeter
1 x Pair of Test Lead
1 x Thermocouple
1 x USB Type-C Cable
1 x Manual (English)
