7S 25A BMS 24V
برای مشاهده گالری روی تصویر کلیک کنید
- دسته : ماژول - تغذیه - پاور بانک و باتری شارژر
- واحد : عدد
- کد محصول: 3867
- وضعیت موجودی : موجوداست جدیدرسید
- 400 افغانی
| تعداد | قیمت |
|---|---|
| 1 | 400 افغانی |

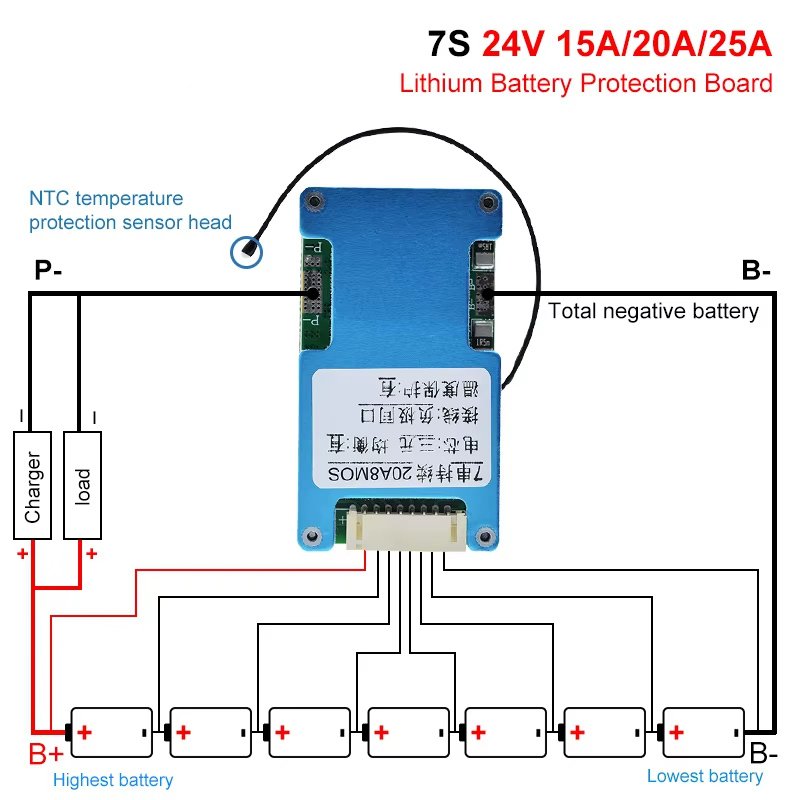

7S 25A BMS 24V
- Features:
Exquisite craftsmanship, stable heat dissipation.
Over voltage protection, over discharge protection.
Charging protection, short circuit protection.
Over current protection, over temperature protection.
Charge balance, disconnection protection.
Parameters:
Type: Ternary/7S/24V
Wiring method: same port
Single battery over-discharge voltage: 2.7V±0.08V
Continuous working current: 25/20/15A (optional)
Instantaneous protection current: 60A
Overcurrent Recovery Condition: Charge Recovery or Load Disconnect
Short circuit recovery conditions: charging recovery or load disconnection
Single battery overcharge voltage: 4.25V±0.025V
Continuous charging current: 20/15/10A (optional)
Charge balance voltage: 4.15V±0.025V
Charge equalization current: 40mA
Charger voltage: 30V (recommended)
Over-charging temperature: 50℃
Discharge over temperature: 70℃
Working power consumption: 30μA
Main circuit on-resistance: 20mΩ
Temperature range: -40 to +80°C
Disconnection protection: yes
Cable size: 2.0MM spacing / 40CM length
The package includes:
Lithium battery protection board X1
Cable X1
