ESP32-S3-WROOM-1 ماژول بلوتوث و وای فای
- دسته : ماژول - RF & بی سیم و WIFI
- واحد : عدد
- کد محصول: 3859
- وضعیت موجودی : موجود جدید
- 650 افغانی
| تعداد | قیمت |
|---|---|
| 1 | 650 افغانی |

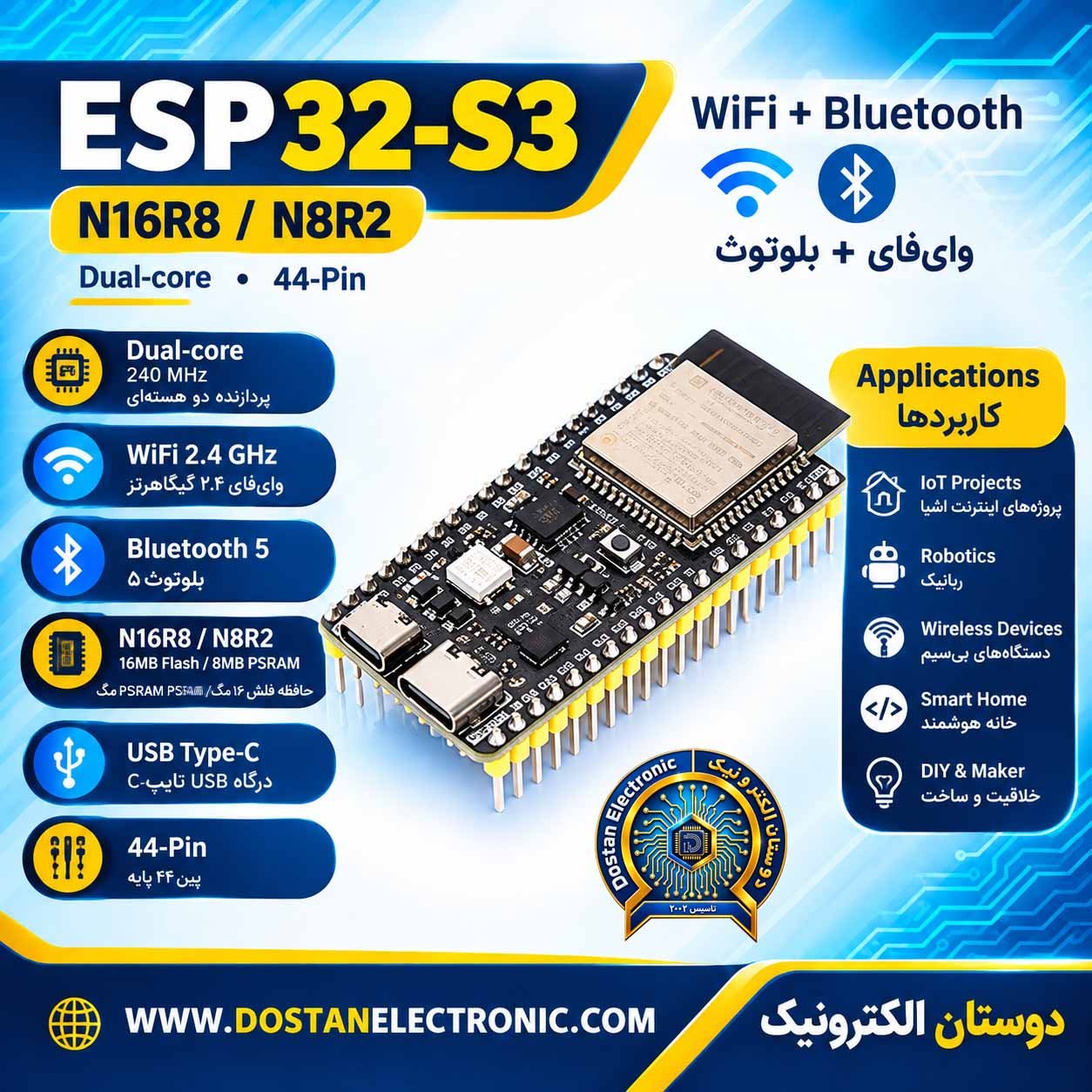

ماژول بلوتوث و وای فای ESP32-S3-WROOM-1
1.ESP32-S3 supports 2.4 GHz Wi-Fi and BT 5 (LE) with powerful AI computing and secure encryption mechanism
2.N16R8 (16M external flash/8M PSRAM)/ AI IOT/ Dual Type-C USB port/W2812 rgb/ High speed USB to serial port
3. The link can choose N8R2/R16R8 specification goods, the series in turn downward compatible, storage specifications of small module program, can be directly run on higher specifications of the memory module without modification
The ESP32-S3 is an MCU chip with integrated 2.4 GHz Wi-Fi and BT 5 (LE), supporting Long Range mode. pins and rich communication interfaces.
The ESP32-S3 supports higher capacity high-speed Octal SPl flash and off-chip RAM, user-configurable data cache and instruction cache.
About ESP32-S3-WROOM-1 module storage description
ESP32-S3-WROOM-1-N8R2:
Built-in sram: 512K
Internal rom: 384K
External psram: 2M
External flash: 8M
ESP32-S3-WROOM-1-N16R8:
Built-in sram：512K
Internal rom: 384K
External psram: 8M
External flash: 16M
The link can be selected from N8R2/R16R8 specification goods, the series in turn downward compatible, storage specifications of small module program, can be directly run on higher specifications of the memory module without modification, such as N4 program can run on top of N8, N16, the external expansion of the module specification for the rom 0 program can operate on top of the external expansion of 2M, 8M psram module.
About ESP32-S3 hardware resources
The ESP32-S3 is a low-power MCU system-on-chip (SoC) with integrated 2.4 GHz Wi-Fi and low-power Bluetooth (BT@LE) dual-mode wireless communication.
The ESP32-S3 has a complete Wi-Fi subsystem and low-power Bluetooth subsystem with industry-leading low-power performance and RF performance. The ESP32-S3 chip provides rich peripheral interfaces and has a variety of unique hardware security mechanisms. The perfect security
mechanism enables the chip to meet the strict security requirements.
WiFi:
Supports IEEE 802.11 b/g/n protocol
Supports 20 MHz and 40 MHz bandwidth in the 2.4 GHz band
Supports 1T1R mode with data rate
Up to 150 Mbps
Wireless Multimedia (WMM)
Frame aggregation (TX/RX A-MPDU, TX/RXA-MSDu)
ImmediateBlock ACK
Fragmentation and Reassembly
(Fragmentation/defragmentation) – Beacon auto-monitoring (hardware TSF) . 4 x virtual Wi-Fi interfaces
Simultaneous support for Infrastructure BSS Station mode, SoftAP mode and Station+SoftAP hybrid mode
Please note that when the ESP32-S3 is scanned in Station mode, the SoftAP channel will change at the same time
Antenna Diversity 802.11 mc FTM – external power amplifier support
Low Power Bluetooth (BT LE): BT5, Bluetoothmesh
High power mode (20 dBm, shared PA with Wi-Fi)
Rate support 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps – AdvertisingExtensions
Multiple Advertisement Sets
Channel Selection Algorithm #2
Wi-Fi and Bluetooth coexist and share the same antenna
45 x GPIO ports
Digital Interface
– 4 x SPI
– 1 x LCD interface (8~16 bit parallel RGB, l8080, MOTO6800), support RGB565, YUV422, YUV420, YUV411 interconversion
– 1 × DVP8-bit~16-bit camera interface
– 3 × UART
-2 × 12C
-2xl2S
– 1× RMT(TX/RX)
– 1 × pulse counter
-LED PWM controller, up to 8 channels
-1 × Full-speed USB OTG
– 1 × USB Serial/JTAG controller
-2 x MCPWM
– 1 x SDIO host interface with 2 card slots
-General purpose DMA controller (GDMA for short), 5 receive and 5 transmit channels
– 1 x TWAIR controller, IS011898-1 compliant (CAN specification 2.0)
-2 × 12-bit SAR ADC, up to 20 channels
-1 × temperature sensor
-14 × capacitive sensing GPIO
Timer.
-4 × 54-bit general-purpose timer
– 1 × 52-bit system timer
– 3 × watchdog timer
-Power management unit, five power modes
-Ultra Low Power Co-Processor (ULP).
– ULP-RISC-V coprocessor
-ULP-FSM coprocessor security mechanism
-Secure boot
-Flash encryption
-4096-bit OTP, up to 1652 bits available to users
Encryption hardware gas pedals.
– AES-128/256 (FIPS PUB197)
– Hash (FIPS PUB 180-4)
– RSA
-Random Number Generator (RNG) – HMAC
-Digital Signature

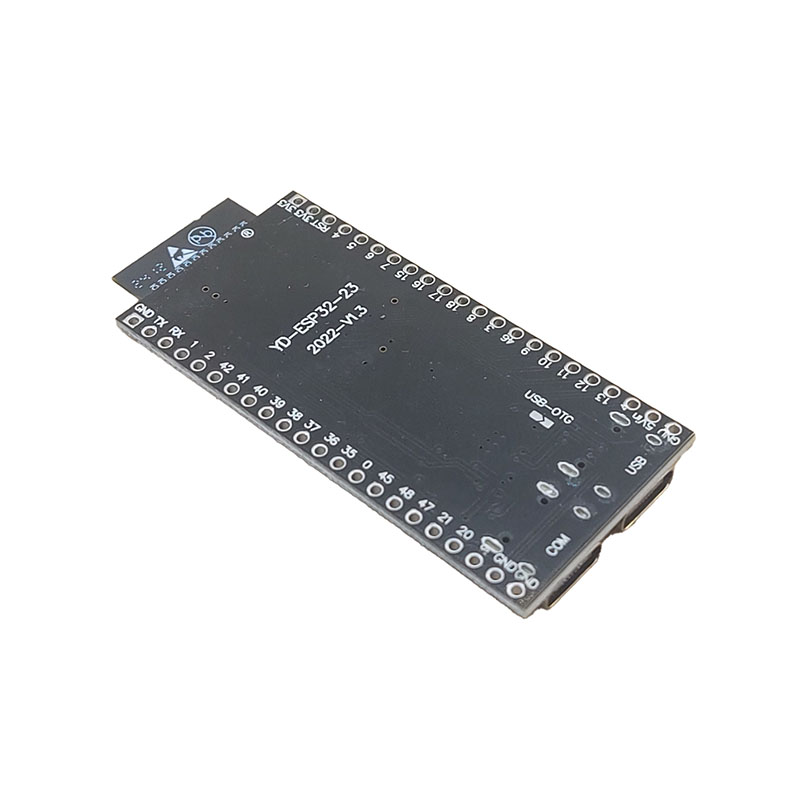

ESP32-S3 download burn-in program files (burn-in firmware), you can download through the ESP32 passthrough USB interface, or through the on-board hardware USB to serial port, in short, the two TYPE-C USB ports on the board can download the program.
In windows environment, you can download through the official flash_download_tool_xxx software, note that the two USB ports way one is called USB way, one is UART way.
