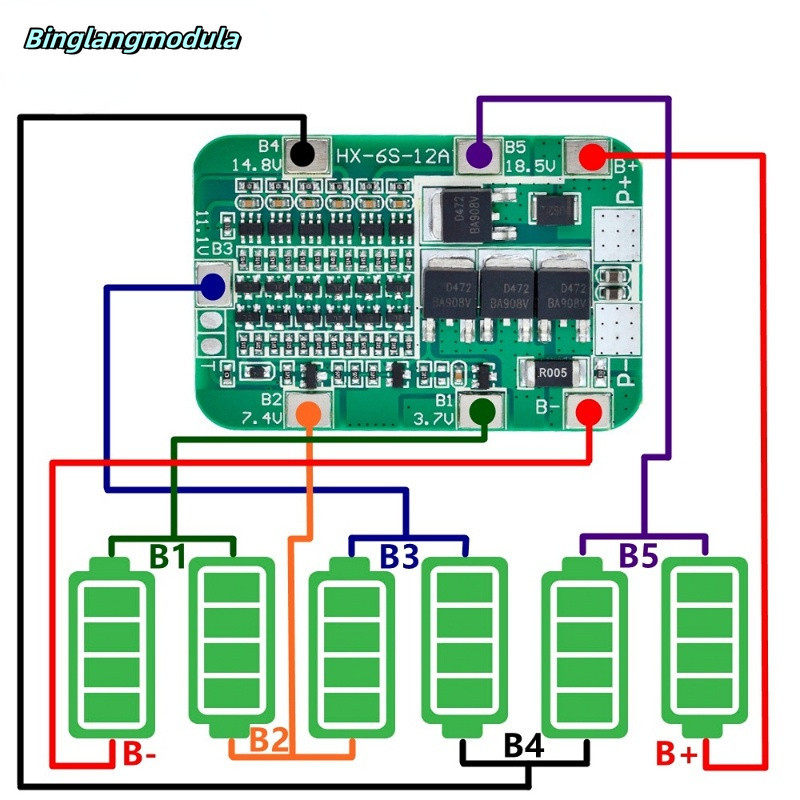

MBS 6S 15A 24V

Product selling point:
1. Use high quality material, durable
2. Stable performance
3. Easy to use
4. Beautiful appearance
5. Wide range of use


Parameters:
Maximum discharge current: 15A
Instant discharge current: 25A
Charging voltage: 25.5V
Charging current: 15 (MAX) A
Overcharge detection voltage: 4.28±0.05 V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08±0.05 V
Over-discharge detection voltage: 2.55±0.08 V
Over-discharge detection delay: 0.1S
Over-discharge release voltage: 2.9±0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9MS
Overcurrent protection current: 30±3A
Overcurrent protection release condition: disconnect the load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 250uS
Conduction internal resistance of the main circuit: ≤20mΩ
Working current: ≤30uA
Sleep current (when the battery is over-discharged): ≤10uA
Temperature range: -30/ +80°C


Description:

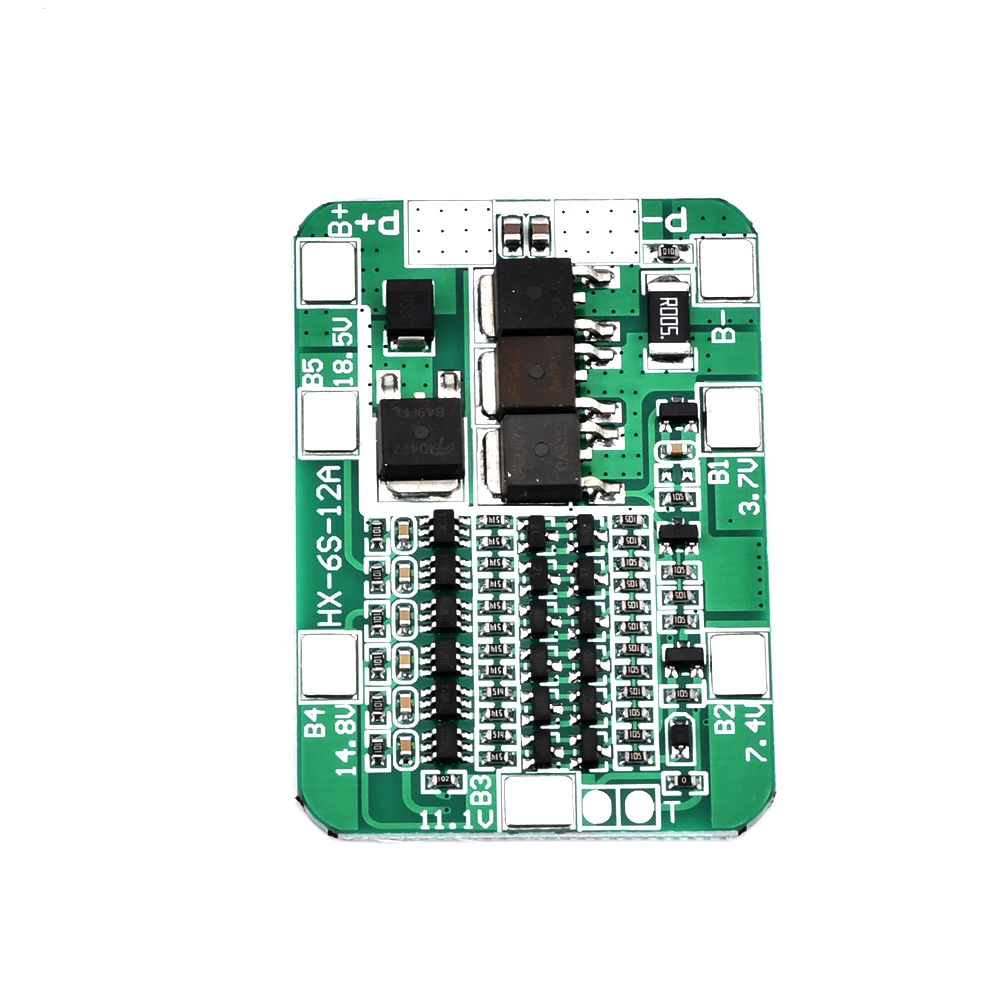

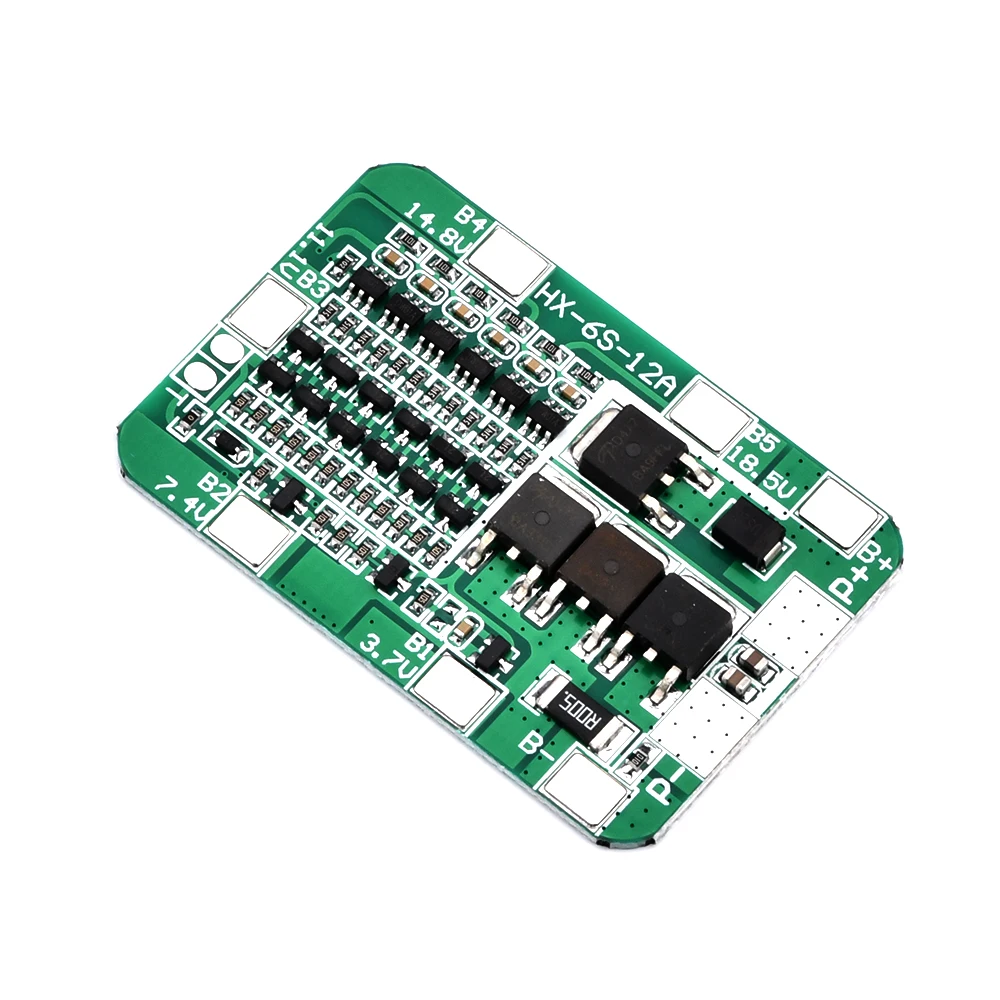

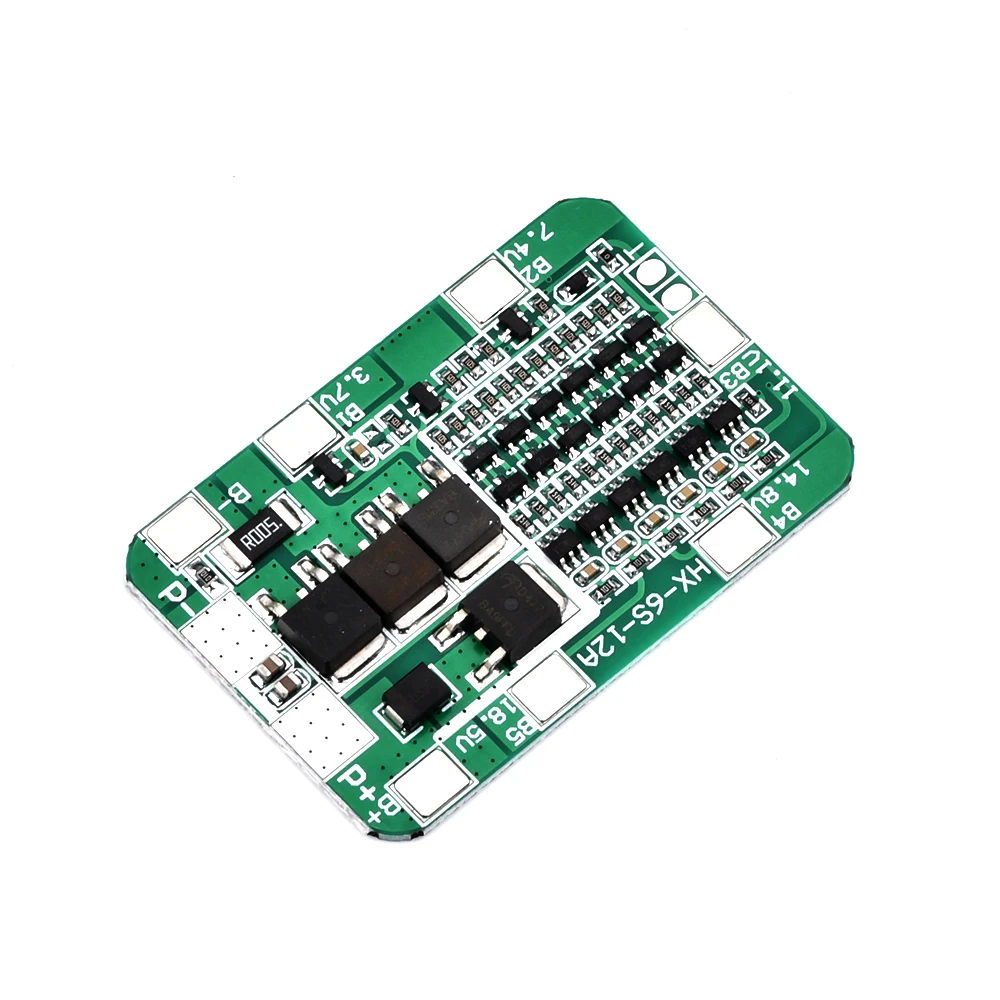

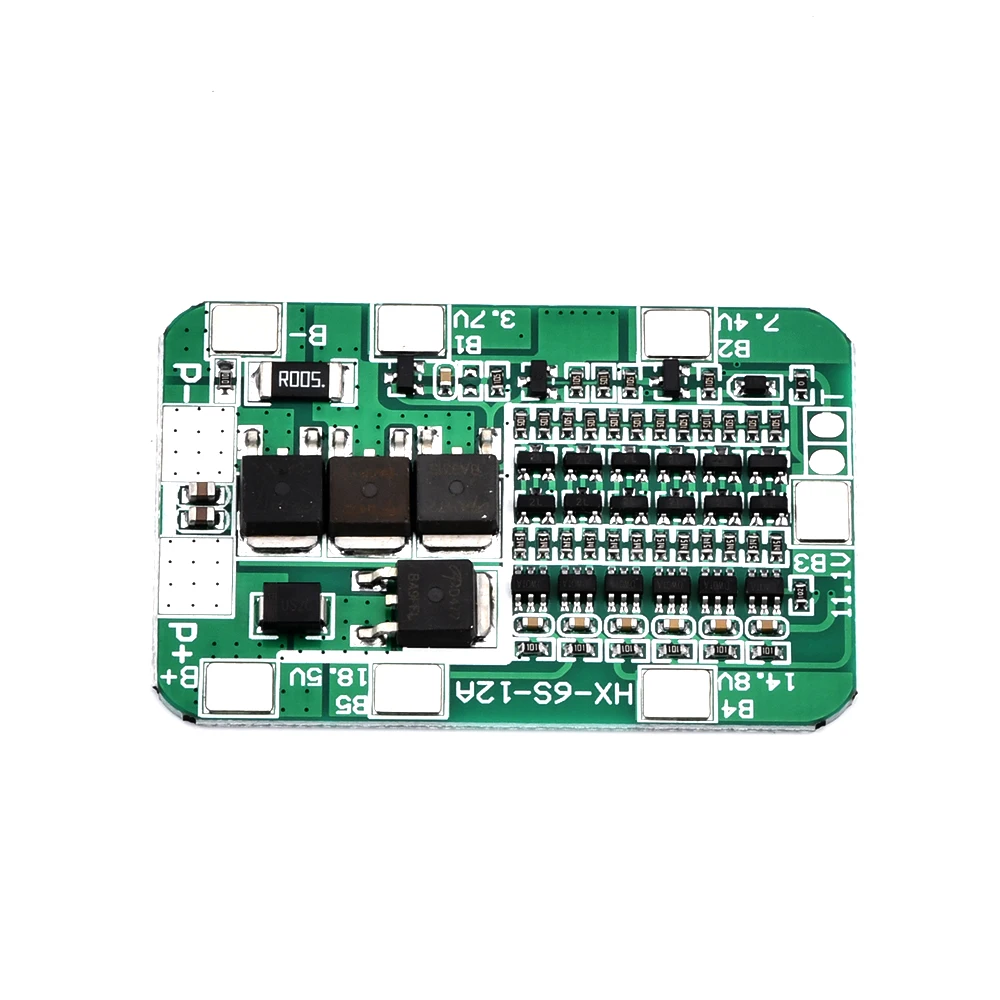

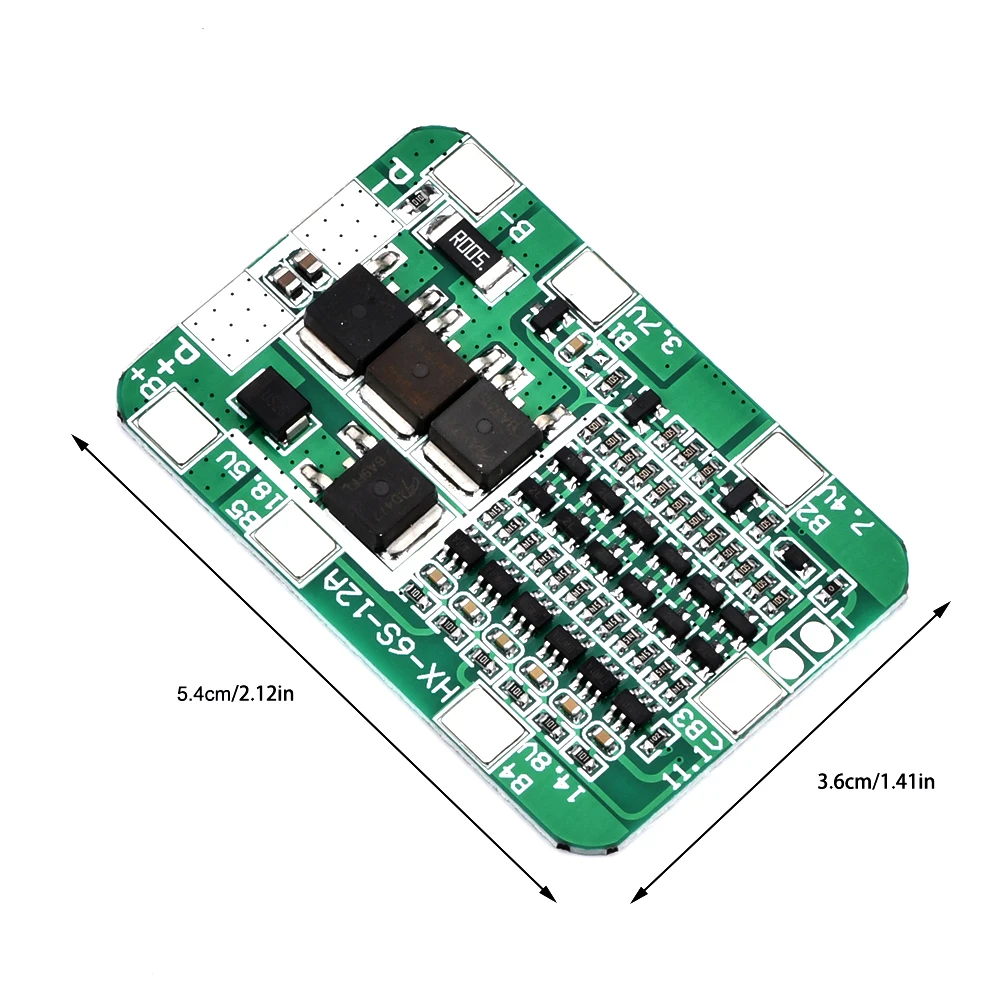

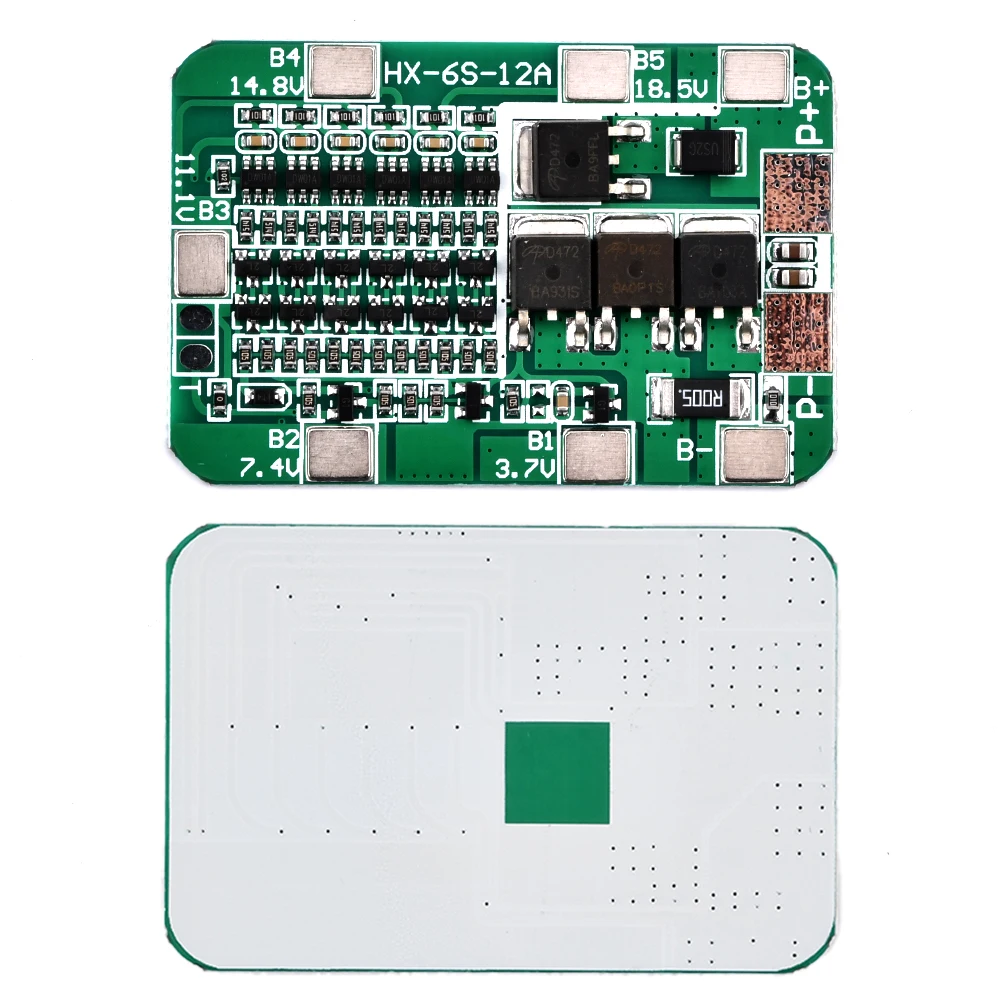

6 strings of lithium-ion batteries) 6 strings of 22V electric tools solar lighting 18650 special ternary 3.7V lithium battery protection board BMS protection board, size: 50*32*3mm, battery protection board, as the name suggests, the battery protection board is mainly for rechargeable (general Refers to the lithium battery) for the protection of the integrated circuit board. The lithium battery (rechargeable type) needs protection because of its own characteristics. Since the material of the lithium battery itself determines that it cannot be charged and discharged by overcharge, overdischarge, overcurrent, short circuit and ultra-high temperature, the lithium battery components will always appear with a protection board with a sampling resistor and a current fuse


The package includes:
Lithium battery protection board*1
