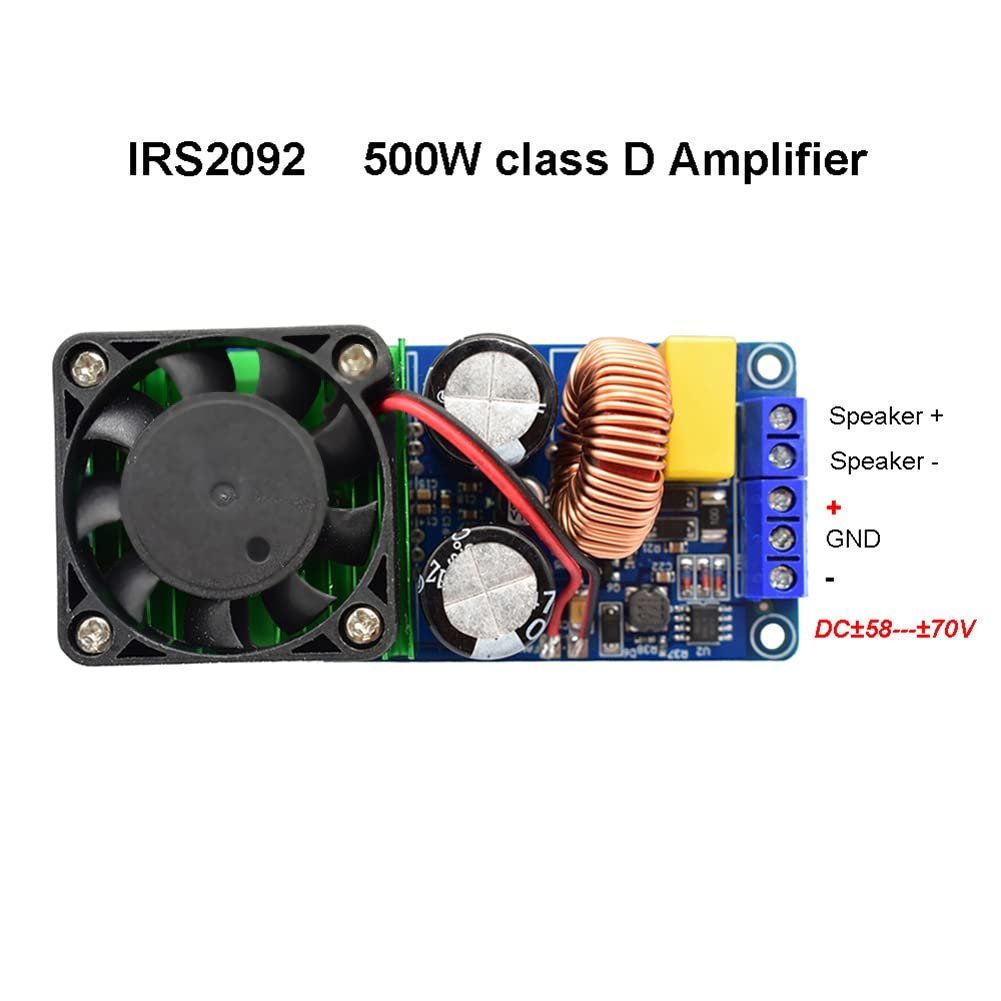

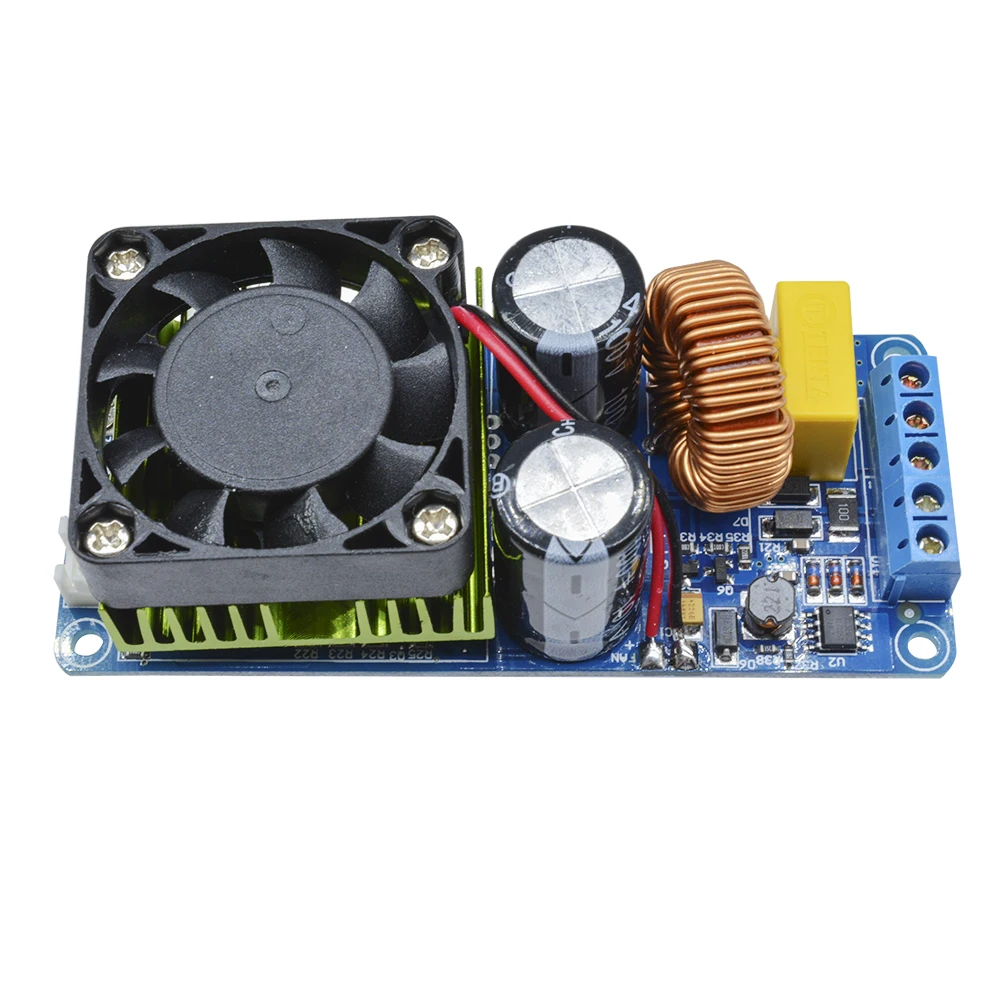

IRS2092S-500W mono Class D amplifier آمپلی فایر

The IRS2092S-based 500W mono Class D amplifier board delivers high-power audio with exceptional efficiency (>90%). Features ±58-70V dual power supply compatibility, delivering 380W at <0.1% THD (4Ω) for high-fidelity applications and 500W at 10% THD for maximum output. 90dB SNR ensures clean sound quality. Compact 100×50×30mm size fits into tight enclosures. Perfect for subwoofer systems, PA sound systems, stage monitors, and professional audio projects.

Product Highlights:
1. 100% brand new and high-quality product.
2. Made from premium materials; durable and practical.
3. Compact size; simple to use and easy to operate.
4. Long service life, reliable performance, low power consumption, and high precision.
5. Wide range of applications.

Product Specifications:
Power Supply: Dual DC power supply ±58V to ±70V
Rated Output Power: 500W (±65V supply, 4Ω load, 10% distortion)
Efficiency: >90%
Signal-to-Noise Ratio (SNR): 90dB
Total Harmonic Distortion (THD):
380W (±65V supply, 4Ω speaker, distortion <0.1%)
280W (±65V supply, 8Ω speaker, distortion <0.1%)
Frequency Range: 20Hz–20kHz
Speaker Impedance: 4–8Ω
Voltage Gain: 36x
Input Sensitivity: 1.5V (RMS)
Product Dimensions: Approx. 100 × 50 × 30mm
