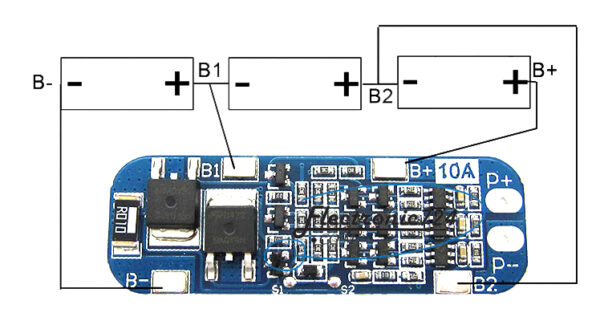

ماژول شارژر 3CELL BATTERY CHARGER

Size: 53 x 17 x 4 mm. Over discharge voltage range : 2.3-3.0 v ± 0.05 Recharge voltage range: 4.25-4.35 v ± 0.05 v Operating current : 6-8A Operating temperature : -40 to + 50 ℃ Current limit : 10-13A Storage condition : -40- + 80 ℃ Resting current : less than 30uA Effective lifetime : over 30,000 hours Internal resistance : less than 100mΩ Short-circuit protection: protection, Self-recovery delay. Charging Voltage: 12.6 V-13 V
